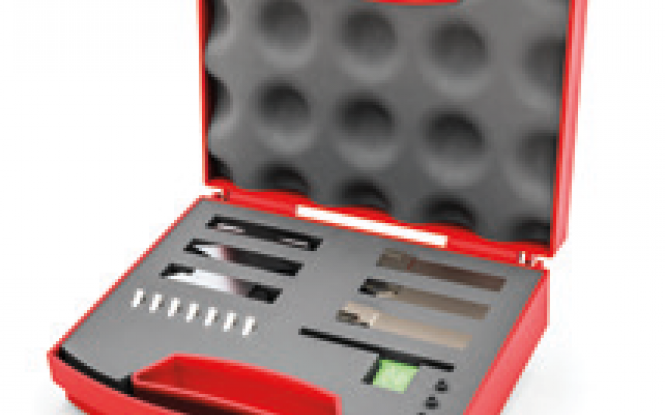

ابزارآلات جانبی و تجهیزات مرتبط با لوله بر و پخ زن مخصوص فک جدا مدل DynaPrep MDSF Split Frame Tooling ساخت وش آمریکا

ابزارآلات جانبی و تجهیزات مرتبط با لوله بر و پخ زن مخصوص فک جدا مدل DynaPrep MDSF Split Frame Tooling ساخت وش آمریکا

اطلاعات گارانتی :

یک سال گارانتی

ضمانت نامه :

پنج سال خدمات پس از فروش
Insert Tooling & Holders
Description Code Part # Application Image
DuoEdge Insert Tooling Holders
37.5° Inside
Bevel Holder
Coated Steel
969 700 201 69-7002-01 Bevel Cutting
37.5° Outside
Bevel Holder
Coated Steel
969 700 301 69-7003-01
30° Inside
Bevel Holder
Coated Steel
969 700 401 69-7004-01 Bevel Cutting
30° Outside
Bevel Holder
Coated Steel
969 700 501 69-7005-01
Tooling Holders
10-37.5° Inside
Bevel Holder
Coated Steel
969 700 801 69-7008-01 Compound Bevel Cutting
10-37.5° Outside
Bevel Holder
Coated Steel
969 700 901 69-7009-01 Compound Bevel Cutting
DuoEdge Inserts (HSS)
30° & 37.5° Inside
Bevel Insert
969 700 202 69-7002-02 Bevel Cutting
30° & 37.5° Inside
Bevel Inserts
(5 Pack)
969 700 212 69-7002-05
30° & 37.5° Outside
Bevel Insert
969 700 302 69-7003-02 Bevel Cutting
30° & 37.5° Outside
Bevel Inserts
(5 Pack)
969 700 312 69-7003-05
Tooling Inserts (HSS)
10-37.5° Inside
Bevel Insert
969 700 802 69-7008-02 Compound Bevel
10-37.5° Inside
Bevel Inserts
(5 Pack)
969 700 812 69-7008-05
10-37.5° Outside
Bevel Insert
969 700 902 69-7009-02 Compound Bevel
10-37.5° Outside
Bevel Inserts
(5 Pack)
969 700 912 69-7009-05
DuoEdge Counterbore Insert Tooling Holders
Coated Steel
DuoEdge Form Tool 4:1 Tooling Holder 969 700 700 69-7007-00 Counterbore
DuoEdge Single Point
Tooling Holder
969 700 701 69-7007-01 Counterbore
Flange Facing Single Point
Tooling Holder
969 700 703 69-7007-03 Flange Facing
DuoEdge Single Point
Tooling Holder
960-718-000 60-718-00 Single Point Bevel
DuoEdge Single Point Inserts
DuoEdge Single Point
HSS Tooling Insert
981 701 010 81-701-01 Carbon steel
DuoEdge Single Point
HSS Tooling Insert
10-Pack
981 701 100 81-701-10
DuoEdge Single Point
HSS Premium Tooling Insert
981 701 009 81-701-00P Stainless steel
DuoEdge Single Point
HSS Premium Tooling Insert 10-Pack
981 701 109 81-701-10P
DuoEdge Single Point Carbide Tooling Insert 981 703 010 81-703-01 High-temp alloys
DuoEdge Single Point
Carbide Tooling Insert
10-Pack
981 703 100 81-703-10
HSS Triple Point
for 69-7007-03 single point holder
956 710 000 56-710-00 Flange Facing



J-Prep Bevel Tooling
Description Code Part # Application Image
DuoEdge™ J-Prep Insert
High Speed Steel (HSS)
981 704 010 81-704-01 3/32in radius
(2.39mm)
981 705 010 81-705-01 1/8in radius
(3.18mm)
981 706 010 81-706-01 3/16in radius
(4.76mm)
981 707 010 81-707-01 1/4in radius
(6.35mm)



PARTING TOOLS
Description Code Part # Application Image
3/16in x 3 7/16in
HSS Parting Tool
(Sever tool)
(4.76mm x 87mm)
943 711 000 43-711-00
43-711-00P
Most materials up to 1in (25.4mm) wall
3/16in x 5in
HSS Parting Tool
(Sever tool)
(4.76mm x 127mm)
943 711 010 43-711-01
43-711-01P
Most materials up to 1in (25.4mm) wall
1/4in x 6in
HSS Parting Tool
(Sever tool)
(6.35mm x 152mm)
960 711 000 60-711-00
60-711-00P
Heavy wall parting, up to 2in (50.8mm) wall
4.3in Carbide Insert Holder Kit
(110mm)
For 3/16in (4.76mm) parting insert
960 716 000 60-716-00 Standard parting, most materials up to 1.5in (38.1mm) wall
3/16in Carbide Insert
(4.76mm)
960 717 000 60-717-00 For use with 60-716-00 Insert Holder
4.3in Carbide Insert Holder Kit
(110mm)
For 1/4in (6.35mm) parting insert
960 714 000 60-714-00 Standard parting, most materials up to 1.5in (38.1mm) wall
1/4in Carbide Insert
(6.35mm)
960 715 000 60-715-00 For use with Insert Holder 60-714-00
10.24in Carbide Insert Holder Kit
(260mm)
For 5/16in (8mm) parting insert
960 712 000 60-712-00 Heavy Wall Parting
5/16in Carbide Insert
(8mm)
960 713 000 60-713-00 For use with Insert Holder 60-712-00
